产品介绍:

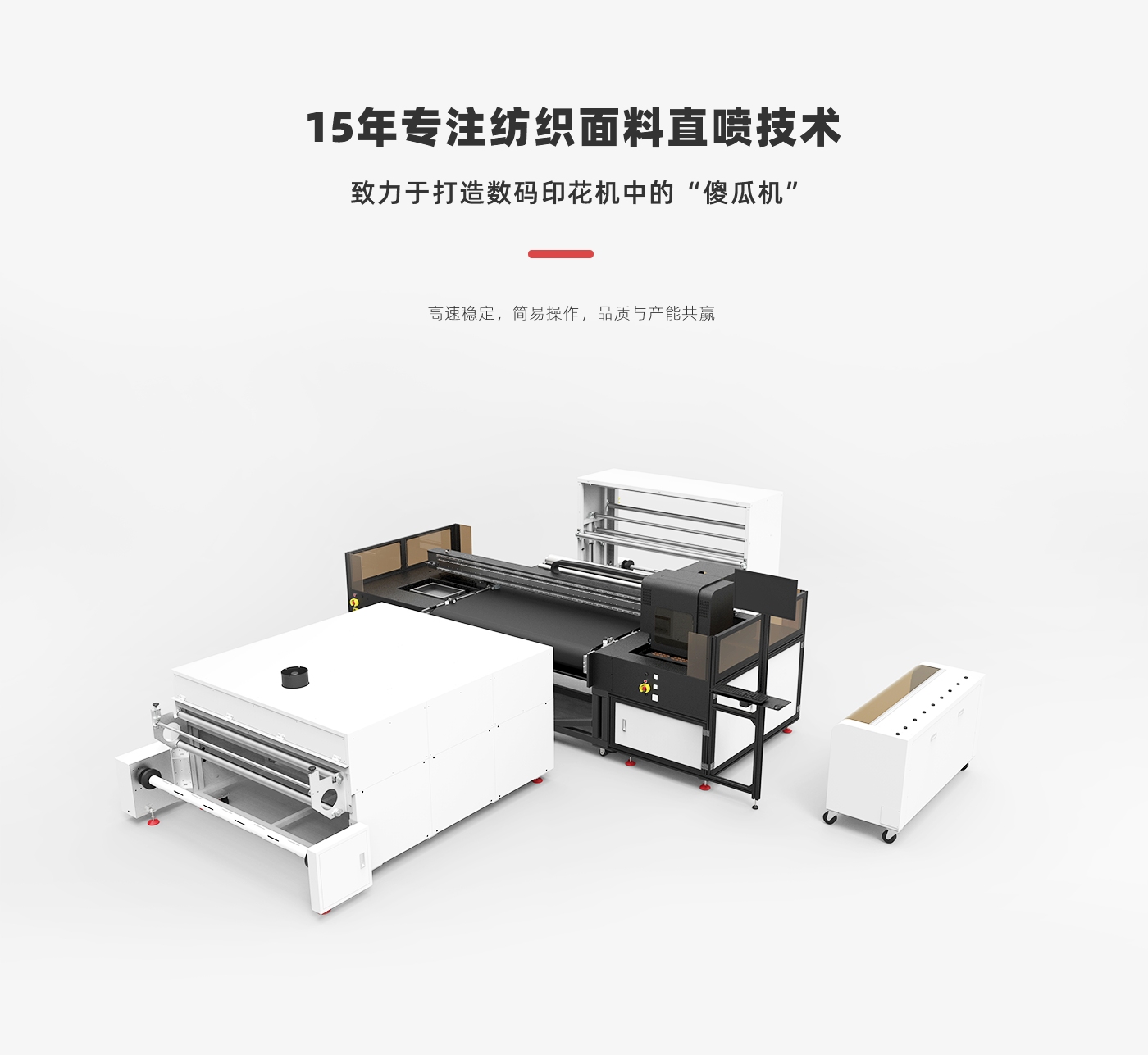

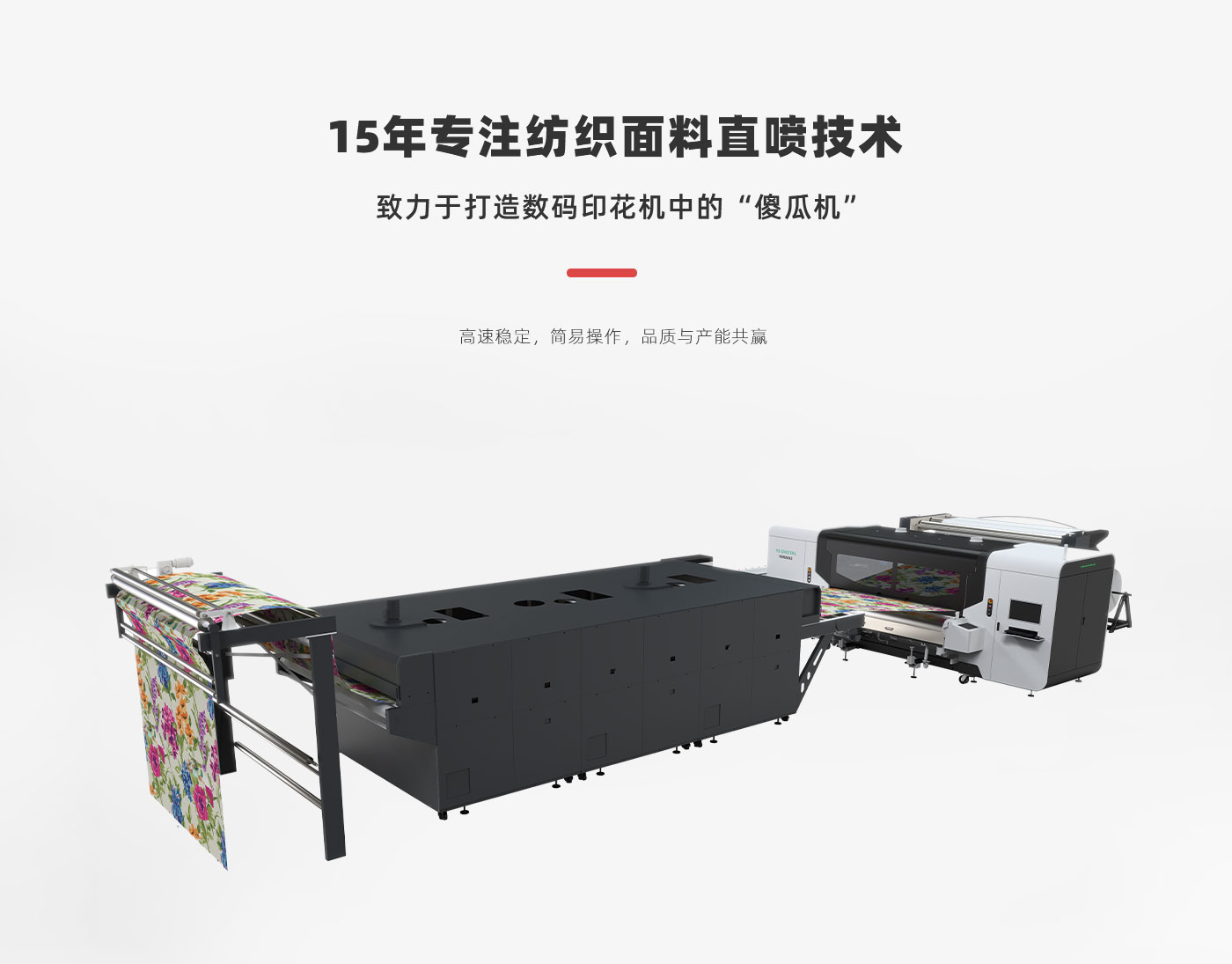

数码印花导带机不要丝网版就可以对应小批量生产,而且打印需要的墨水少,可减少水资源的使用量,降低排水处理方面的环境负担,在环境方面的优越性更是受到了高度关注,作为符合时代需求的环保印花方式颇受期待。在各种数码印花机中,导带式数码印花机可直接在纺织面料上喷印。
主要产品:
数码印花导带机 、高速数码印花机、小型数码印花机、数码印花地毯机、数码印花打纸机
功能特点:
1.打印控制系统
可手动升降喷头小车,在断电后可手动保湿。 专业多种纺织印花RIP软件 NEOSTAMPA / TEXPRINT。 智能感应系统:自动放卷系统、面料高度检测、防止面料卷入水洗槽装置、烘箱加热和打印同步系统,避免在暂停或者打印时烘干一直工作导致过度加热、自动收卷系统。
2.高精密导带传动系统
配置适合高速机的大直径主动辊。 高效稳定的导带防走偏系统。 精准的步进控制。
3.高精度打印配置
钢结构横梁,双直线导轨,打印车头运动精准平稳,低噪音。 采用高精度喷头底板,使安装更换喷头更快捷方便。精度 0.001mm
工艺流程:

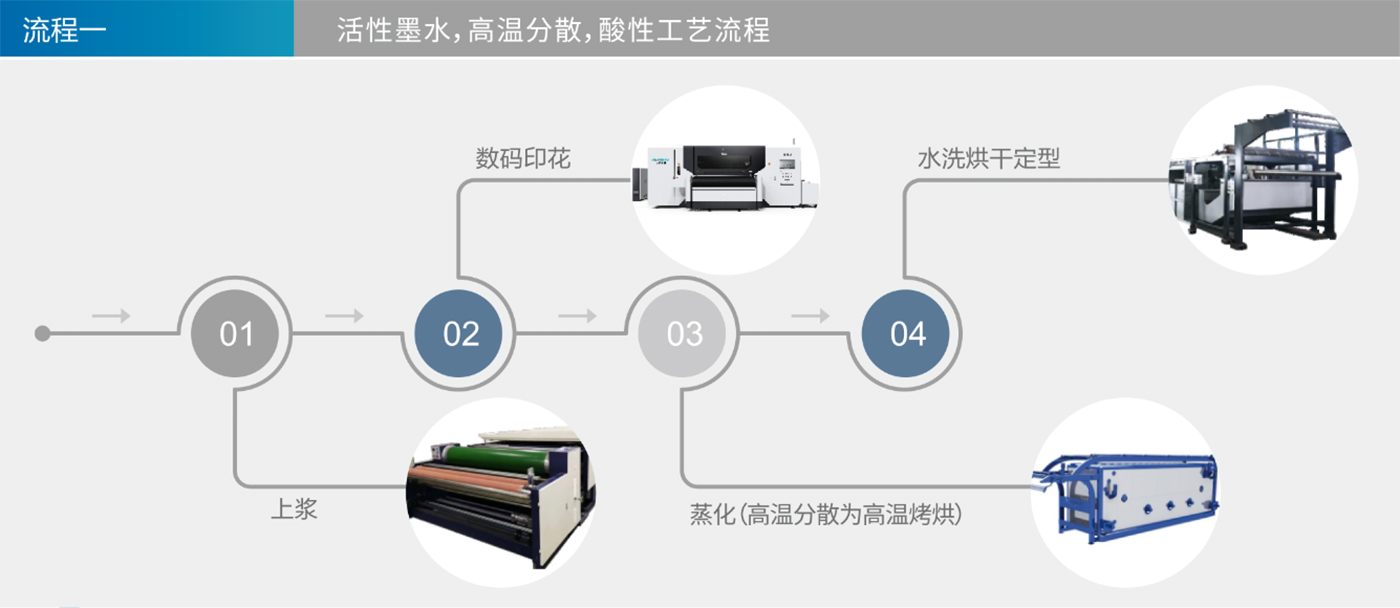

流程一 Process One 活性墨水, 分散墨水(直喷) , 酸性工艺流程 Reactive , Disperse , Acid

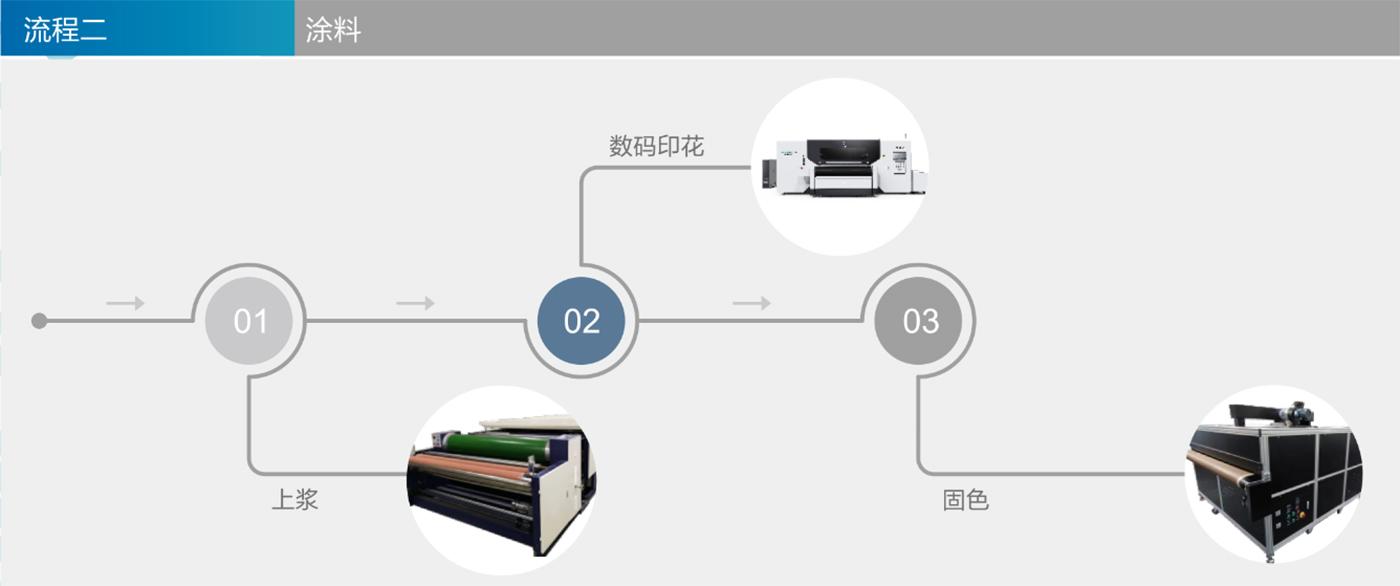

流程二 Process two 涂料 (无需水洗) Pigment
技术参数:

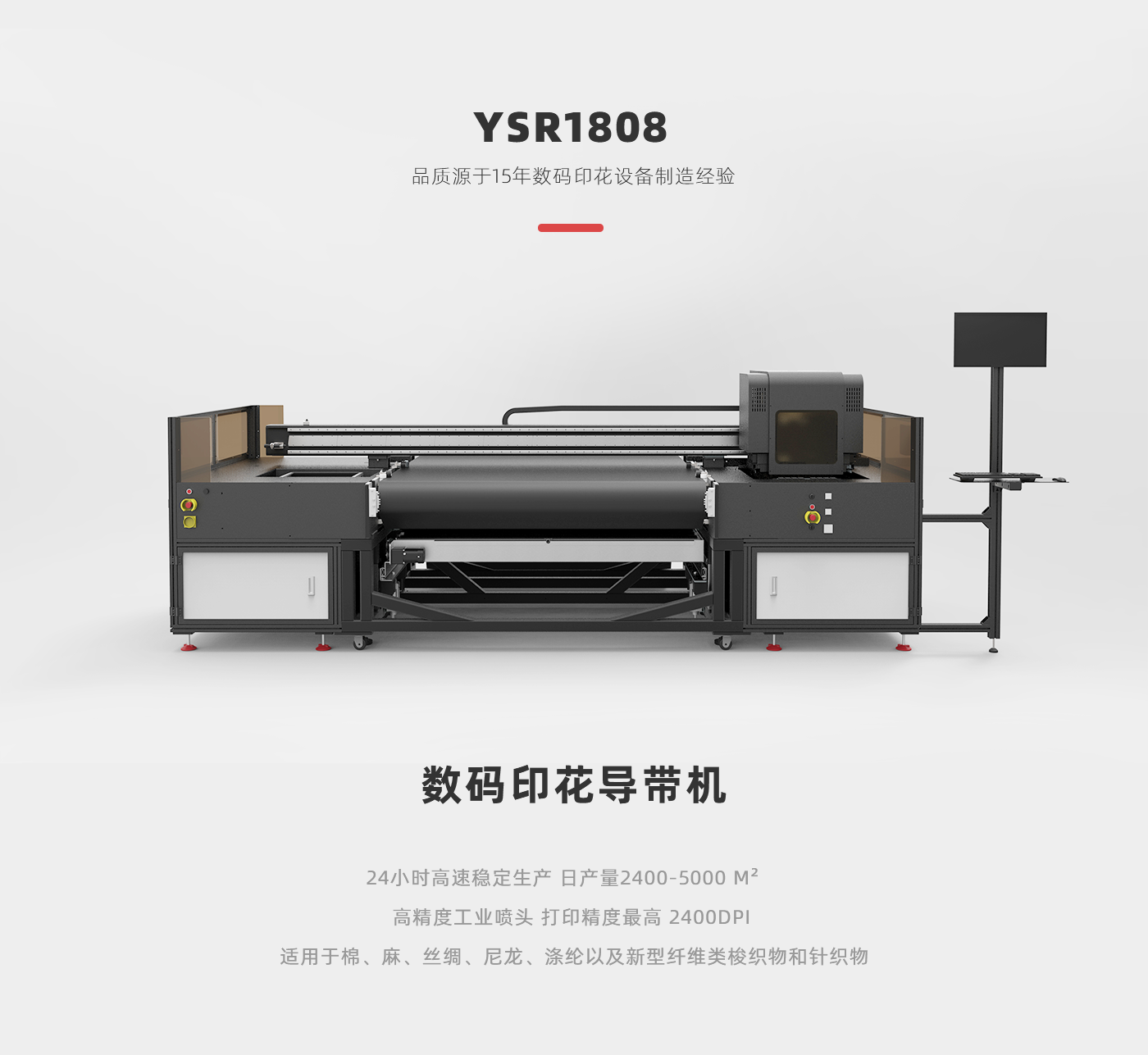

型号 Product mode | YSR1808 | |
喷头 Print head | 工业级喷头8个GEN5E 8pcs Ricoh Gen5E print head | |
介质输送方式 Fabric conveyance mode | 导带输送 Adhesive belt with cleaning and heating system | |
最大打印宽度 Maximum medium width | 1850mm | |
最高打印精度 Maximum printing resolution | 2400DPI | |
打印速度 Production Speed | 130平方/小时 130m2/h | |
RIP软件配置 Print software | Neostampa / Texprint | |
打印机头介绍 Printing part introduction | 自动负压供墨,自动小车升降,自动正压清洗,自动保湿 Auto negative pressure ink supply,auto up & down of carriage,auto print head clean,auto print head capping | |
导带底座功能介绍 Belt system introduction | 自动烘干收卷系统,自动清洗导带系统,防压辊印,压辊游动 Auto dry & take-up system,auto belt cleaning system,no roll seal on fabric(roller fore and aft moving) | |
独立烘箱 Dryer unit | 铝箔、红外加热风烘干 Aluminum foil heater,infrared heater and hot wind | |
墨水 Ink Type | 活性,分散,酸性,涂料( 八色) reactive , disperse , acid , pigment(8 color) | |
打印端口 Interface | 千兆以太网,光纤 GBE ,Optical fiber | |
打印高度 Print head height | 1.5-30mm,自动调节高度 Height adjustable 1.5-30mm to adapt medium of different thickness | |
电源 Power voltage | 交流380V三相五线 380V, 3L+N+G ( with independendent reliable effective earth wire ) | |
电源频率 Power frequency | 50HZ/60HZ ±1HZ | |
电耗 Power consumption | 打印 10kw,烘干 16kw printer 10kw,dyer 16kw | |
作业环境 Workshop condition | 温度20-30℃,湿度:35-65% Temperature:20-30℃, Humidity:35-65% | |
尺寸Measurement (with wooden case) | 打印机 Printer | 4250*2200*1950mm (长*宽*高) (L* W* H) |
烘箱 Dryer | 2700*2200*2300mm (长*宽*高) (L* W* H) | |
供墨箱 Ink cabinet | 1900*700*1000mm (长*宽*高) (L* W* H) | |
进布装置(选配) Fabric feeder(optional) | 2580*1200*1950mm (长*宽*高) (L* W* H) | |
重量 Weight | 毛重:4800公斤 净重:4200公斤 G.W:4800kg N.W.:4200KG |
技术参数

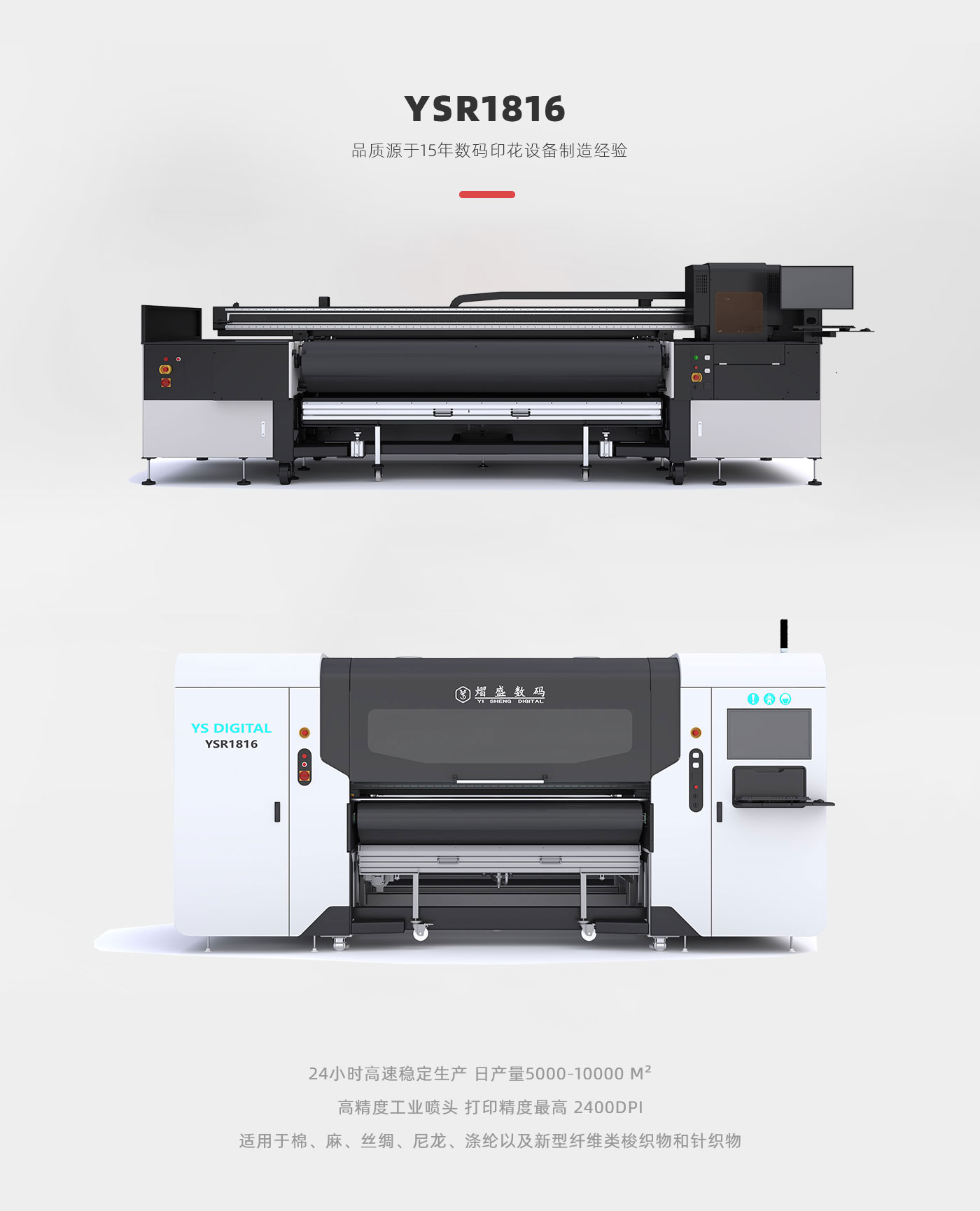

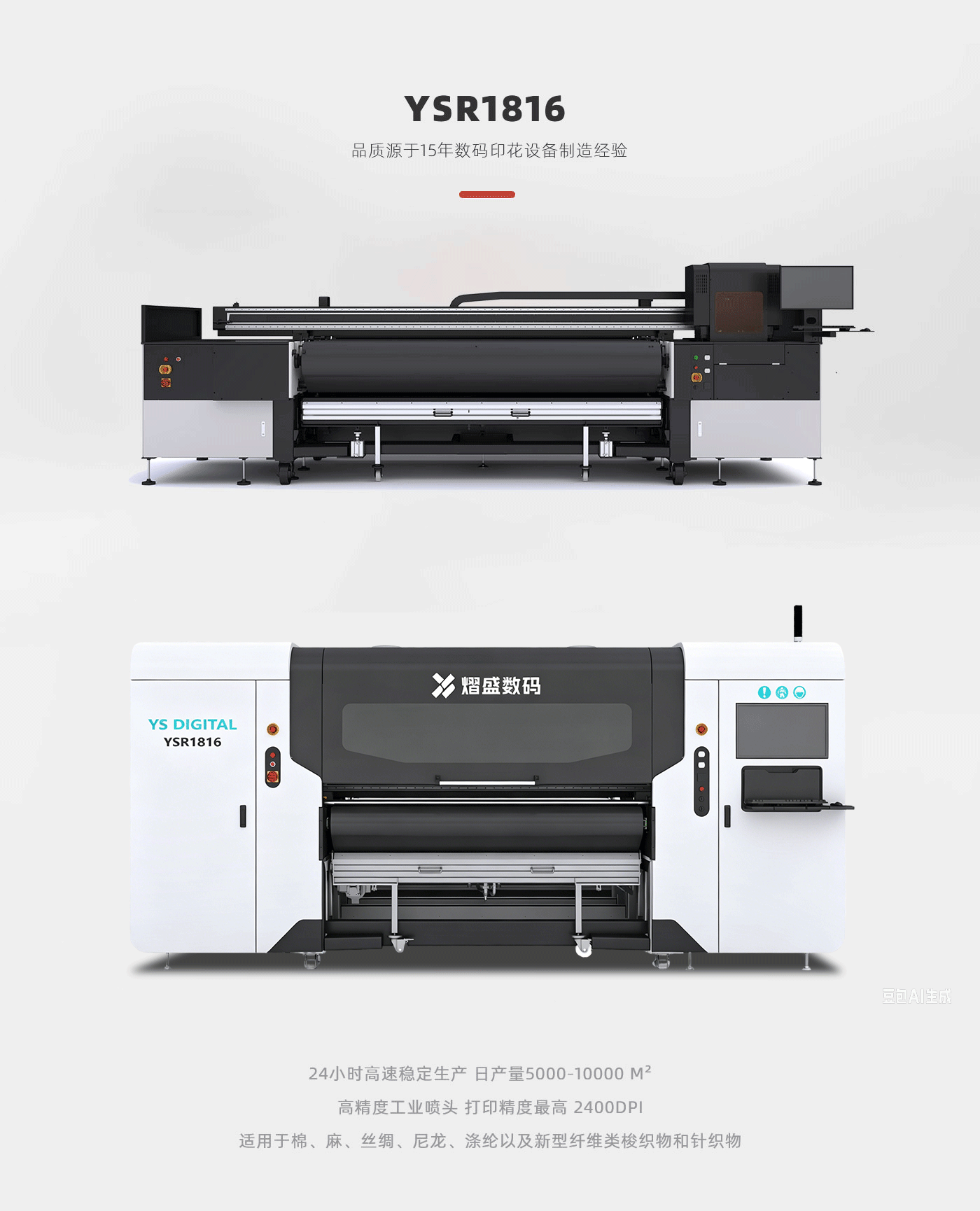

型号 Product mode | YSR1816 | |
喷头 Print head | 工业级喷头16个GEN5E 16pcs Ricoh Gen5E print head | |
介质输送方式 Fabric conveyance mode | 导带输送 Adhesive belt with cleaning and heating system | |
最大打印宽度 Maximum medium width | 1850mm | |
最高打印精度 Maximum printing resolution | 2400DPI | |
打印速度 Production Speed | 250平方/小时 250m2/h | |
RIP软件配置 Print software | Neostampa / Texprint | |
打印机头介绍 Printing part introduction | 自动负压供墨,自动小车升降,自动正压清洗,自动保湿 Auto negative pressure ink supply,auto up & down of carriage,auto print head clean,auto print head capping | |
导带底座功能介绍 Belt system introduction | 自动烘干收卷系统,自动清洗导带系统,防压辊印,压辊游动 Auto dry & take-up system,auto belt cleaning system,no roll seal on fabric(roller fore and aft moving) | |
独立烘箱 Dryer unit | 铝箔、红外加热风烘干 Aluminum foil heater,infrared heater and hot wind | |
墨水 Ink Type | 活性,分散,酸性,涂料( 八色) reactive , disperse acid , pigment(8 color) | |
打印端口 Interface | 千兆以太网,光纤 GBE ,Optical fiber | |
打印高度 Print head height | 1.5-30mm,自动调节高度 Height adjustable 1.5-30mm , to adapt medium of different thickness | |
电源 Power voltage | 交流380V三相五线 380V , 3L+N+G ( with independent reliable effective earth wire ) | |
电源频率 Power frequency | 50HZ/60HZ ±1HZ | |
电耗 Power consumption | 打印 10kw,烘干 20kw printer 10kw,dyer 20kw | |
作业环境 Workshop condition | 温度20-30℃,湿度:35-65% Temperature:20-30℃, Humidity:35-65% | |
尺寸Measurement (with wooden case) | 打印机 Printer | 4250*2200*1950mm (长*宽*高) (L* W* H) |
烘箱 Dryer | 2700*2200*2300mm (长*宽*高) (L* W* H) | |
供墨箱 Ink cabinet | 1900*700*1000mm (长*宽*高) (L* W* H) | |
进布装置(选配) Fabric feeder(optional) | 2580*1200*1950mm (长*宽*高) (L* W* H) | |
重量 Weight | 毛重:5200公斤 净重:4600公斤 G.W:5200kg N.W.:4600KG |

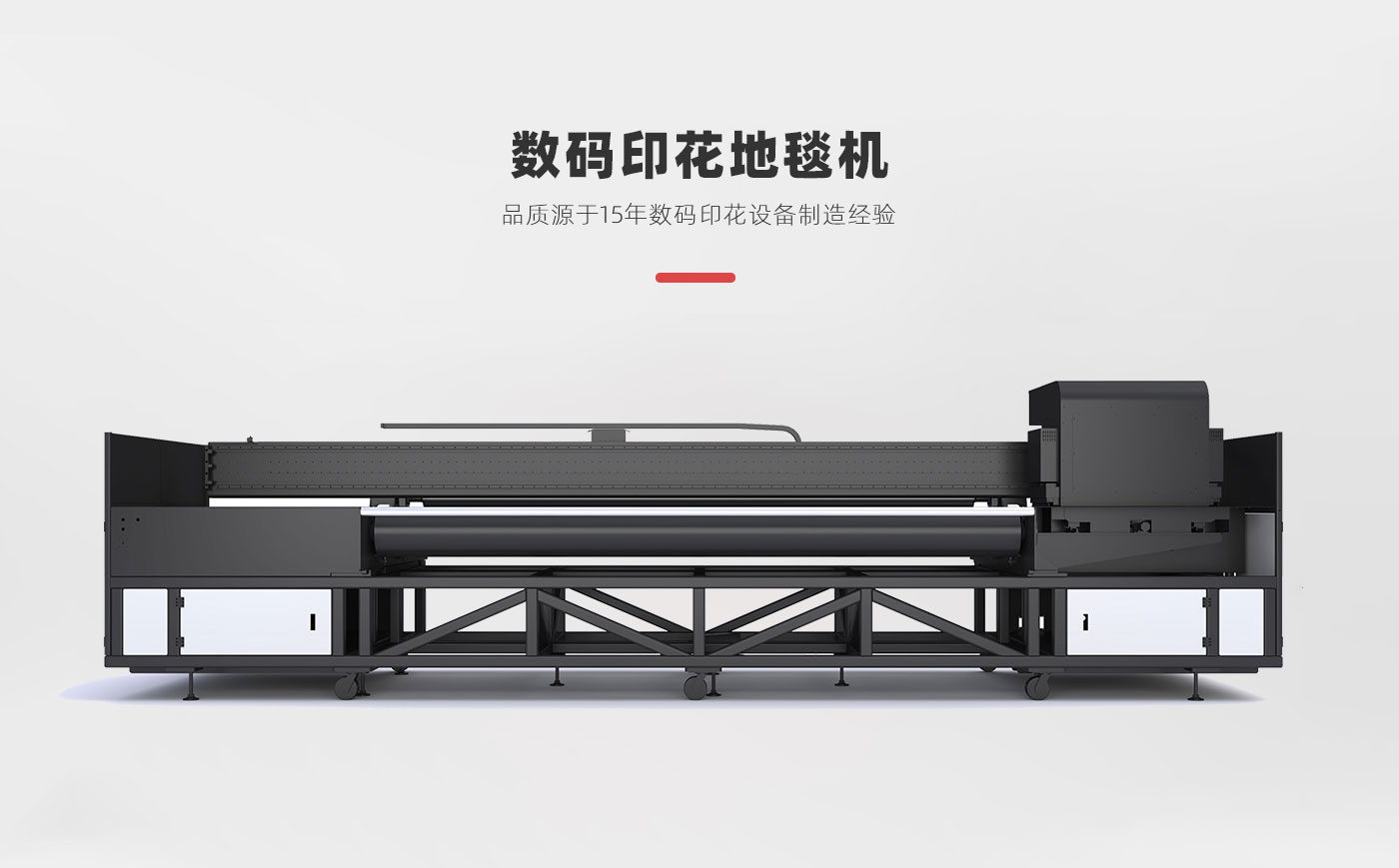

地毯机概述
“Surpasser--赛百色”地毯高清喷墨印花联合机将数码高清喷墨技术与地毯印花生产工艺完美结合,为不同地毯厂家提供最佳的高清喷墨印花生产方案。
个性化定制服务:
结合每个用户的实际情况,定制用户需求的生产线。
工艺介绍:
案例展示:
